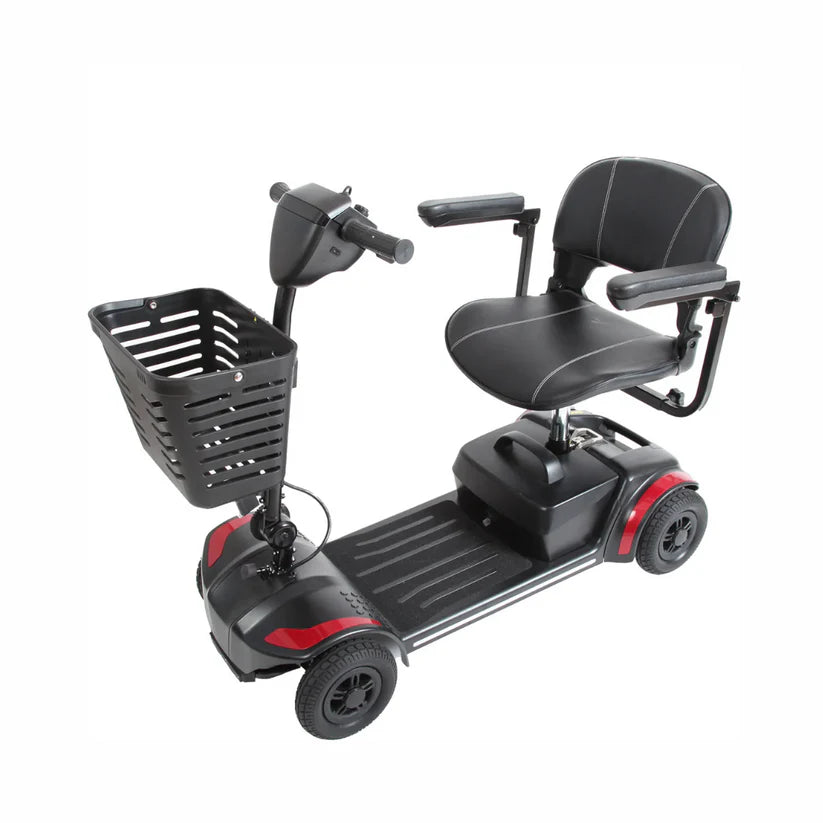

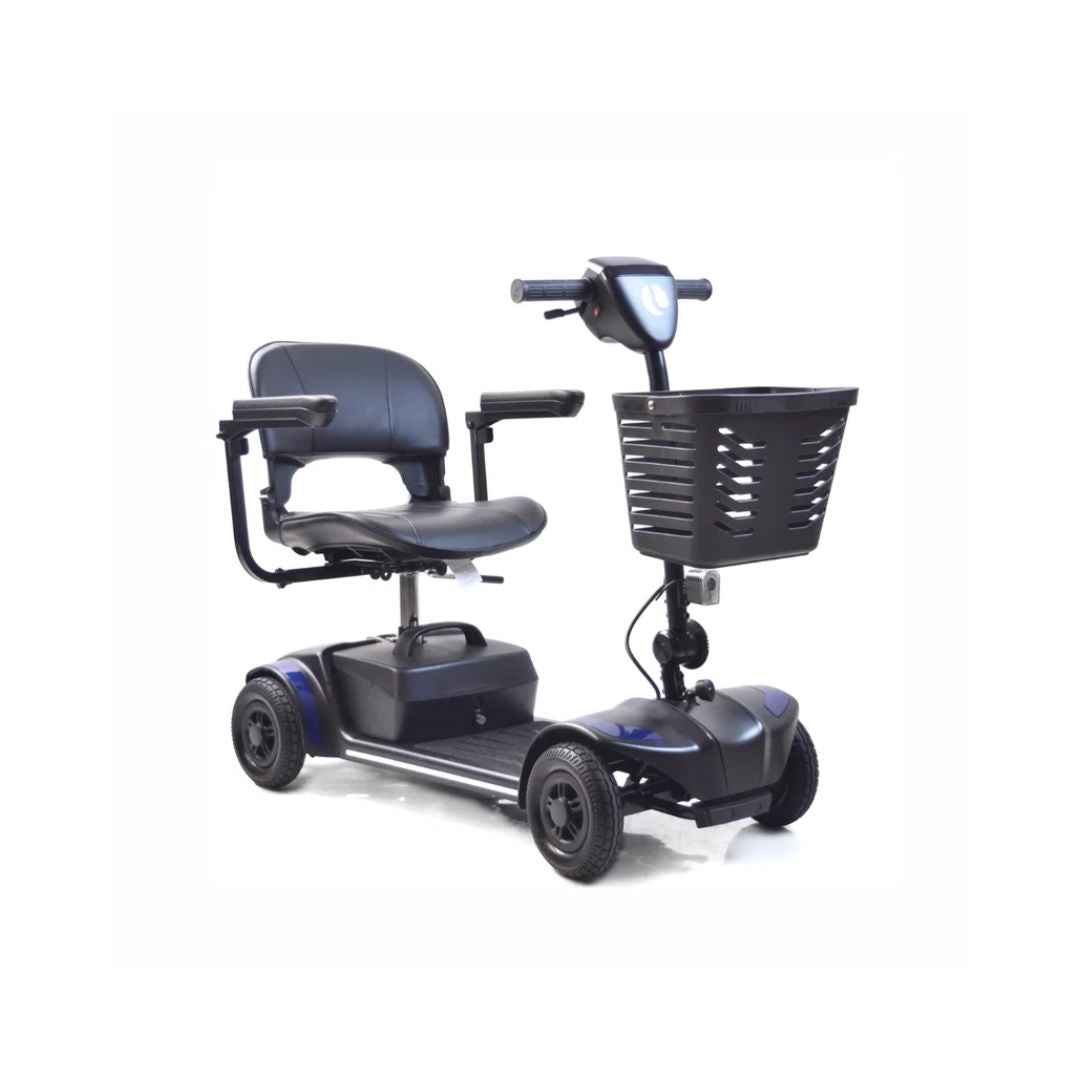

Journey Adventure 4 Wheel Mobility Scooter (8910) By Journey Health

Features:

• Easy to use tiller steering

• Variable speed settings

• Headlight and horn for added safety

• Easily switches to reverse

• Comfortable, full swivel, height-adjustable seat

• Width adjustable and flip-back padded armrests

• Handy removable basket with handle

• Rear reflectors and anti-tippers

• 300 pound weight capacity

• Model: 8910 Journey Adventure


• Type Scooter: rear wheel drive, Class A


• Endurance mileage: 24V15Ah AGM Battery: 16km


• Maximum height of obstacle: 2 in


• Minimum width required to reverse: 51.1 in


• L x W x H Dimensions unfolded(mm): 41.3” x 19” x 34.6”


• Total mass, battery included: 96 lbs (24V15Ah AGM)


• Weight of battery: 20 lbs


• Maxium weight of single part（Front frame assembly）: 33 lbs


• Effective seat depth: 14.2 in


• Effective seat width: 17.1 in


• Seat surface height at front edge: 20-21.5 in

• Height footplate: 4.3 in


• Angle seat surface: 3°


• Battery: AGM Battery 24V15Ah


• Controller: Dynamic 50A


• Protection class: IP X5


• Battery charger: Input: 100-240 VAC , 50-60Hz , 1.2-0.5A , Class II Output : 24VDC , 2.0A


• Protection class of battery charger: IPX1


• Insulation class of battery charger: Class 2


• Max. sound level scooter motor: 68 dB


• EMC compatible according to: ISO 7176-21


• Ignitability of upholstery according to: EN 1021-2


• Diameter rear wheels (number): 8x2.5inch


• Diameter front wheels (number): 8x2.5 inch
  Suspension: N/A


• Control (wig-wag): Lever to start/stop movement


• Operating console: Rotatable switch for speed control


• Storage and use temperature: -10 ° C to +50 ° C


• Humidity to store and use: 30% ~70%


• Overall length with leg rest: 41.1" in


• Overall width: 19" in


• Seat depth: 14.2" in


• Folded length: 41.1" in


• Seat width: 17.1" in


• Folded width: 19" in


• Folded height: 13.8" in


• Backrest angle: 20"


• Total weight: 96 lbs


• Backrest height: 13" in


• Weight of the Heaviest Part: 33" lbs


• Floor to Seat Distance: 18" in


• Dynamic Stability Uphill: 8"


• Range: 10 miles


• Obstacle Climbing: 1.8 in


• Turning Radius: 51.2 in


• Maximum Speed Forward: 5 mph


• Weight Capacity: 300 lbs


• Minimum Braking Distance From Max Speed: 54.3 in


• Required Doorway Entry Depth: 54.3 in
